OUR PROFILES
ALUMINIUM PROFILES FOR MADE-TO-MEASURE GLASS WARDROBE AND CABINET DOORS
We use premium-grade aluminium profiles manufactured to precise tolerances, ensuring strength, stability, and long-term performance. Designed for made-to-measure glass and mirrored wardrobe and cabinet doors, our profiles provide a reliable structural frame while maintaining a clean, architectural finish for contemporary interiors.
SLIM PROFILE
-
2350MM MAX DOOR HEIGHT
-
19MM VISIBLE FRONT EDGE
-
DESIGNED FOR HINGED GLASS WARDROBE DOORS
-
SLEAK LIGHTWEIGHT APPEARANCE
4MM GLASS INSERT
-
BLUM CLIP-TOP HINGE
-
EASY THREE-DIMENSIONAL ADJUSTMENT
-
CAN BE SUPPLIED WITH 0-3-9-18mm PLATES
-
BLACK ONYX COLOUR
Featuring a 19 mm visible front edge and designed for 4 mm toughened glass, the Slim Profile delivers a clean architectural finish for aluminium framed glass wardrobe doors and glass cabinet doors.
Precision engineered for made-to-measure applications, it is suitable for fitted wardrobes, mirrored wardrobe doors, cabinetry, and bespoke joinery projects requiring durability, accuracy, and visual clarity
HINGE SYSTEM
All Slim Profile doors are supplied with Blum CLIP top hinges as standard. Doors are provided in a full overlay configuration by default, while inset and half-inset applications can be achieved using alternative mounting plates.
For inset installations, doors are supplied with a full overlay hinge and an 18 mm mounting plate. Blum CLIP top hinges allow precise adjustment, quick installation, and smooth, reliable door operation.
ARCHITECTURAL PROFILE
4MM GLASS INSERT
-
3600MM MAX DOOR HEIGHT
-
8MM VISIBLE FRONT EDGE WITH 45 MM REAR SUPPORT
-
DESIGNED FOR HINGED GLASS WARDROBE DOORS
-
REFINED ARCHITECTURAL FINISH WITH STRUCTURAL STABILITY
-
BLUM CLIP-TOP HINGE
-
EASY THREE-DIMENSIONAL ADJUSTMENT
-
CAN BE SUPPLIED INSET, OVERLAY OR HALF OVERLAY
-
BLACK ONYX COLOUR
Featuring a 19 mm visible front edge and designed for 4 mm toughened glass, the Slim Profile delivers a clean architectural finish for aluminium framed glass wardrobe doors and glass cabinet doors.
Precision engineered for made-to-measure applications, it is suitable for fitted wardrobes, mirrored wardrobe doors, cabinetry, and bespoke joinery projects requiring durability, accuracy, and visual clarity
HINGE SYSTEM
Architectural Profile doors are supplied as standard with Blum CLIP ON hinges. This hinge system supports full overlay, inset, and half-inset applications using standard 3 mm mounting plates, providing flexibility for fitted wardrobes, cabinetry, and custom joinery projects.
Blum CLIP ON hinges allow accurate adjustment during installation and are designed for long-term reliability. The CLIP mechanism enables quick hinge fitting and removal while ensuring smooth, controlled opening and closing performance.
PROFILE HANDLES
GLASS DOOR
20MM
44MM
2MM
GLASS DOOR
GLASS DOOR
-
HANDLES ARE MANUFACTURED FROM 1.5 MM ALUMINIUM
-
RECOMMENDED MINIMUM 3 MM GAP BETWEEN DOORS
-
MINIMUM 2 MM CLEARANCE REQUIRED BETWEEN SIDE-BY-SIDE HANDLES
-
ALLOW ADDITIONAL CLEARANCE WHERE REQUIRED FOR SMOOTH OPERATION
CURVE
-
45mm
-
200mm
VANN
-
100mm
-
200mm
-
350mm
-
1200mm
NOMA
-
200mm
-
350mm
ONA
-
50mm
-
200mm
-
350mm
-
1100mm
CUTT
-
200mm
-
400mm

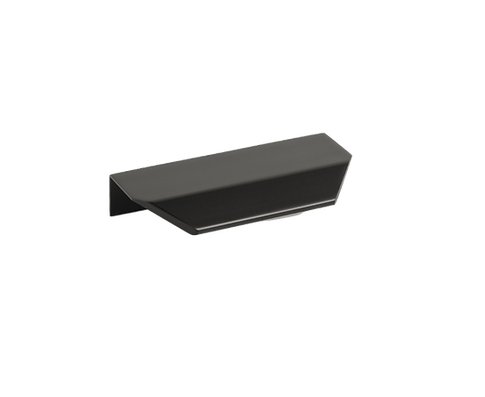

We use Häfele profile handles to ensure consistent quality and reliable performance across our aluminium framed glass doors. All handles are manufactured from 1.5 mm thick aluminium for durability and a refined finish.
When planning your glass wardrobe door layout, clearance must be considered carefully. We recommend a minimum 3 mm gap between doors to allow smooth operation and accurate alignment. Where handles are positioned side by side, a minimum 2 mm gap between handles is recommended to prevent contact during use.
PULL HANDLES AND KNOBS
If you prefer to use traditional knobs or handles, please contact us to discuss your requirements. We can arrange glass drilling to accommodate alternative hardware options.
FOR BESPOKE ENQUIRIES
